ActiveMQ with Spring in Eclipse

by Nat Laughlin on 2011-10-26

In this tutorial I will show you how to get ActiveMQ with Spring running under Tomcat in Eclipse.

ActiveMQ

ActiveMQ is a message broker that implements the Java Message Service.

nathaniel-laughlins-imac:Desktop natlaughlin$ wget http://apache.opensourceresources.org//activemq/apache-activemq/5.5.1/apache-activemq-5.5.1-bin.tar.gz
--2011-10-26 20:28:04--  http://apache.opensourceresources.org//activemq/apache-activemq/5.5.1/apache-activemq-5.5.1-bin.tar.gz
Resolving apache.opensourceresources.org (apache.opensourceresources.org)... 65.111.178.49
Connecting to apache.opensourceresources.org (apache.opensourceresources.org)|65.111.178.49|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 24577261 (23M) [application/x-gzip]
Saving to: “apache-activemq-5.5.1-bin.tar.gz”

100%[====================================================================================================>] 24,577,261   445K/s   in 51s

2011-10-26 20:28:55 (472 KB/s) - “apache-activemq-5.5.1-bin.tar.gz” saved [24577261/24577261]

nathaniel-laughlins-imac:Desktop natlaughlin$ tar -zxf apache-activemq-5.5.1-bin.tar.gz
nathaniel-laughlins-imac:Desktop natlaughlin$ cd apache-activemq-5.5.1
nathaniel-laughlins-imac:apache-activemq-5.5.1 natlaughlin$ ls
LICENSE                WebConsole-README.txt  conf                   example                webapps
NOTICE                 activemq-all-5.5.1.jar data                   lib
README.txt             bin                    docs                   user-guide.html
nathaniel-laughlins-imac:apache-activemq-5.5.1 natlaughlin$ ./bin/macosx/activemq start
Starting ActiveMQ Broker...
nathaniel-laughlins-imac:apache-activemq-5.5.1 natlaughlin$ ./bin/macosx/activemq status
ActiveMQ Broker is running (72926).

There is a web interface you can use to see your queues and make sure everything is working. Point the browser to http://localhost:8161/admin/.

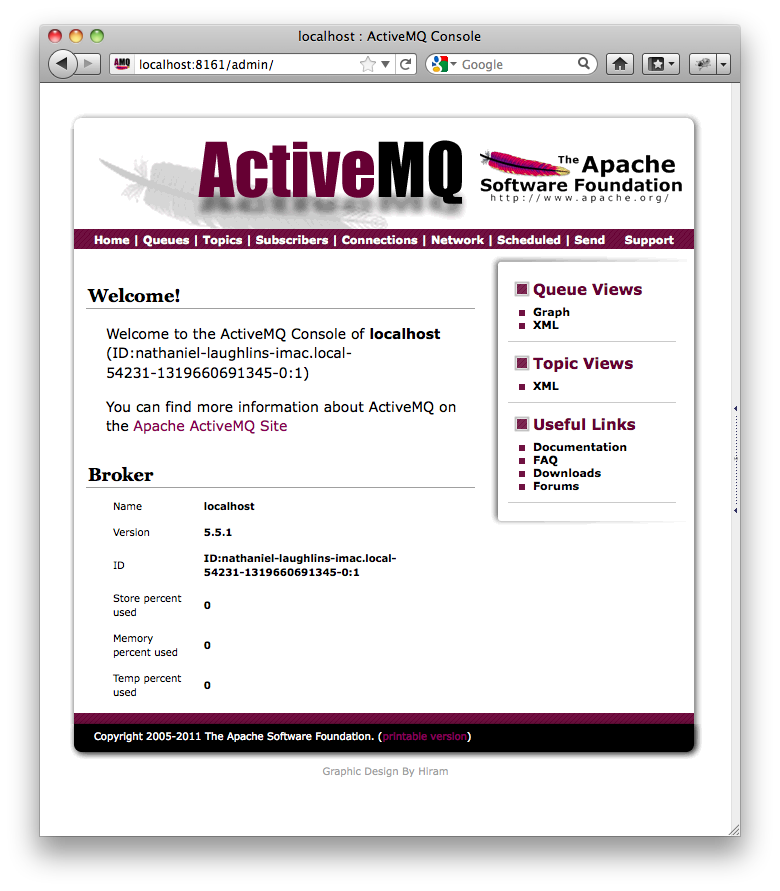

ActiveMQ Console

Tomcat

Download Tomcat.

nathaniel-laughlins-imac:Desktop natlaughlin$ wget http://mirror.cc.columbia.edu/pub/software/apache/tomcat/tomcat-7/v7.0.22/bin/apache-tomcat-7.0.22.tar.gz
--2011-10-26 21:17:50--  http://mirror.cc.columbia.edu/pub/software/apache/tomcat/tomcat-7/v7.0.22/bin/apache-tomcat-7.0.22.tar.gz
Resolving mirror.cc.columbia.edu (mirror.cc.columbia.edu)... 128.59.59.71
Connecting to mirror.cc.columbia.edu (mirror.cc.columbia.edu)|128.59.59.71|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 7421415 (7.1M) [application/x-gzip]
Saving to: “apache-tomcat-7.0.22.tar.gz”

100%[======================================================>] 7,421,415    662K/s   in 11s

2011-10-26 21:18:02 (639 KB/s) - “apache-tomcat-7.0.22.tar.gz” saved [7421415/7421415]

nathaniel-laughlins-imac:Desktop natlaughlin$ tar -zxf apache-tomcat-7.0.22.tar.gz
nathaniel-laughlins-imac:Desktop natlaughlin$ cd apache-tomcat-7.0.22
nathaniel-laughlins-imac:apache-tomcat-7.0.22 natlaughlin$ pwd
/Users/natlaughlin/Desktop/apache-tomcat-7.0.22

Eclipse and Tomcat

Download Eclipse. I have Eclipse IDE for Java EE Developers Mac OS X 32-bit.

Open Eclipse
Select File -> New -> Other and choose Servers

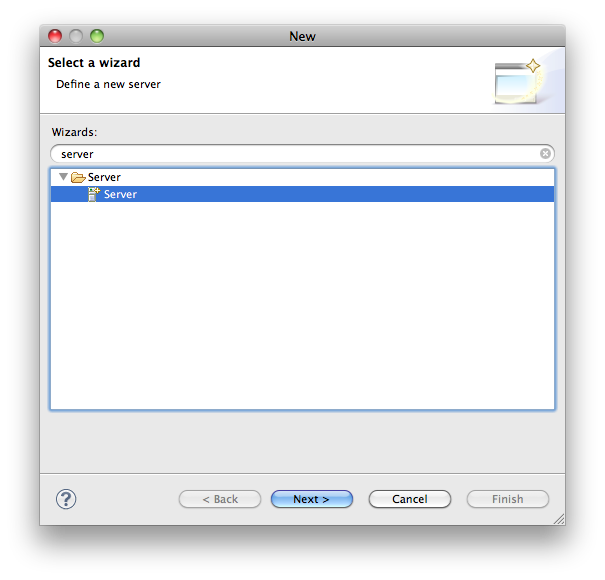

Eclipse Tomcat 1

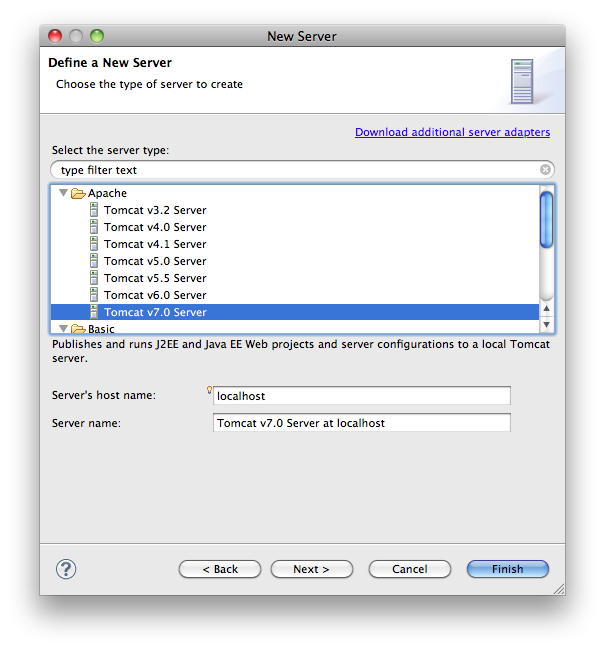

Eclipse Tomcat 2

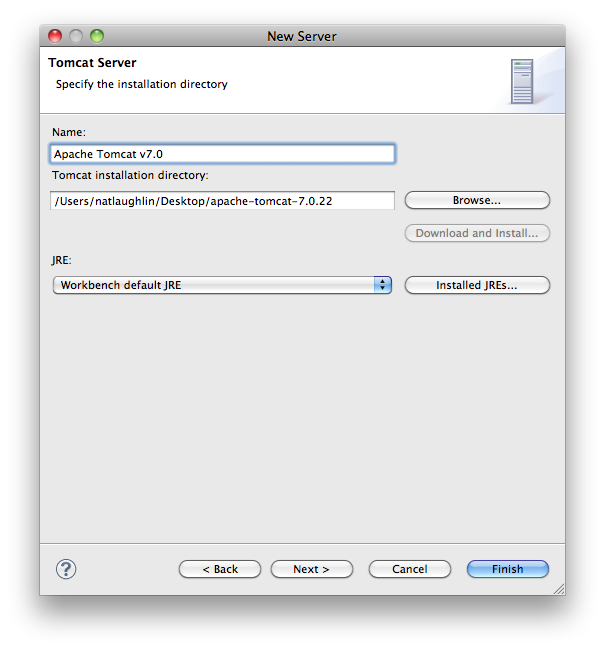

Eclipse Tomcat 3

Eclipse Project Import

Download the project ActiveMQSpring.

Open Eclipse
Select File -> Import

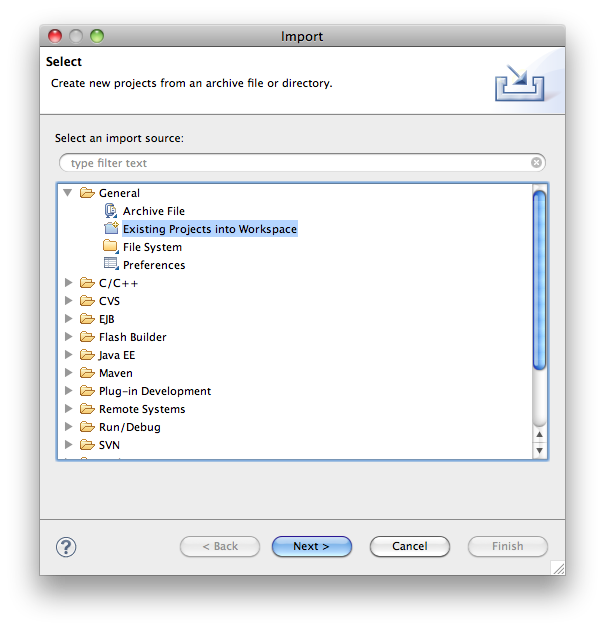

Eclipse Import 1

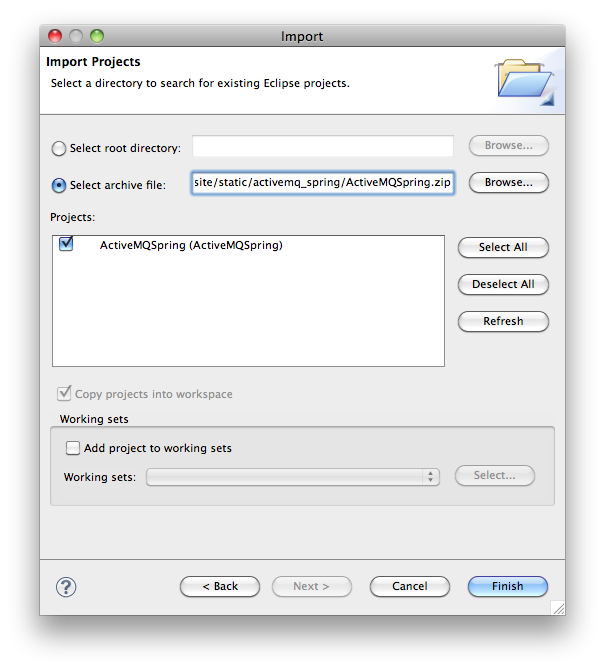

Eclipse Import 2

Now add the project to be automatically deployed to Tomcat.

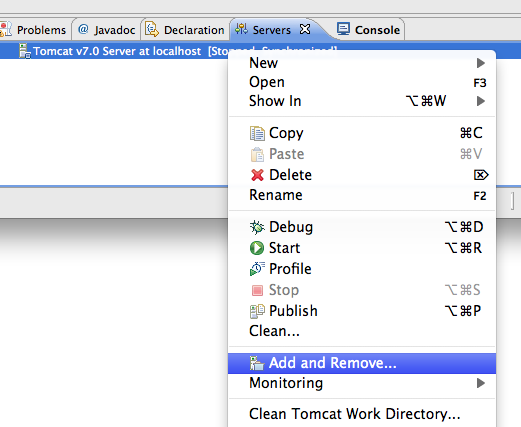

Eclipse Import 3

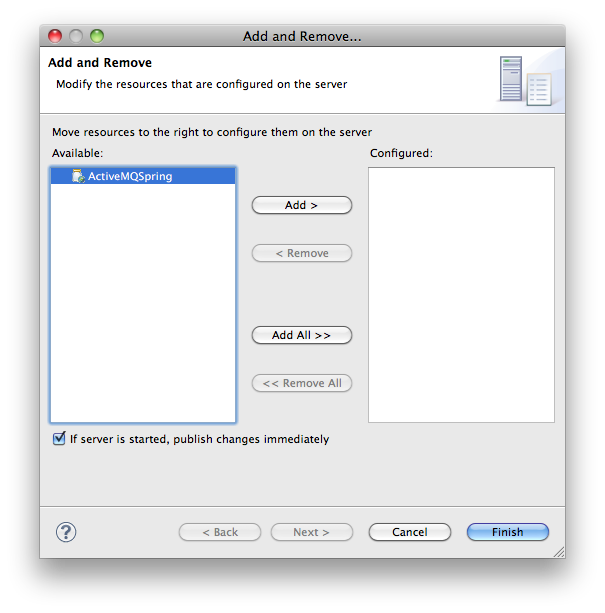

Eclipse Import 4

Select Add All and Finish
Select Run -> Debug to start Tomcat
That's it!

Testing

Open your browser and go to http://localhost:8080/ActiveMQSpring/activemq/receive.

Don't worry if nothing happens. It is waiting to process ActiveMQ messages added to the TESTQUEUE queue.

We can add a message to the queue by opening another browser tab at http://localhost:8080/ActiveMQSpring/activemq/send?message=hello123.

If you go back to the receive tab, it should display Message received: hello123.

Spring Configuration

Let's look at WebContent/WEB-INF/applicationContext.xml.

<bean id="broker" class="org.apache.activemq.xbean.XBeanBrokerService">
    <property name="useJmx" value="false"></property>
    <property name="persistent" value="true"></property>
    <property name="transportConnectors">
        <bean class="org.apache.activemq.broker.TransportConnector">
            <property name="uri" value="tcp://localhost:0" />
        </bean>
    </property>
</bean>

<bean id="connectionFactory" class="org.apache.activemq.spring.ActiveMQXAConnectionFactory">
    <property name="brokerURL" value="vm://localhost"></property>
</bean>

I've set up the project to use an internal broker, XBeanBrokerService. This is initialized when Tomcat starts. If we want to connect to the ActiveMQ broker we set up in the first section of this tutorial, comment out the above, and uncomment:

<bean id="connectionFactory"
    class="org.apache.activemq.spring.ActiveMQXAConnectionFactory" >
    <property name="brokerURL" value="tcp://localhost:61616"></property>
</bean>

Maven

If you modify the Maven dependencies through the pom.xml, you may have to redeploy the jar files to the WEB-INF/lib directory. To do this I executed this on the project root:

mvn dependency:copy-dependencies -DoutputDirectory=./WebContent/WEB-INF/lib
